Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head
Part Number:
CV913-2


UPC:
Your Cost $142.95
STATUS:  IN STOCK - FREE SHIPPING

FRONT DRIVESHAFT CV Rebuild Kit ... NON Greaseable CV BALL Socket

  • Fits 4X4 FRONT DRIVESHAFT with DANA SPICER CV HEAD
    • RAM 1500
      • 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPICER CV HEAD
    • RAM 2500 and RAM 3500
      • 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPICER CV HEAD
  • DOES NOT FIT 2003 and newer RAM 2500, 3500 AAM 1355 series CV with 1 3/16 diameter u-joint caps- American Axle Manufacturing front CV Driveshafts

IMPORTANT: YOU MUST MEASURE....to order the correct parts

YOU NEED TO KNOW if you have 1.062 (1-1/16) or 1.187 (1-3/16) bearing caps in your double cardan on your front driveshaft

  • IF YOU HAVE 1.062 (1-1/16) inch bearing caps then this is the correct part for your Ram Front Driveshaft
  • IF YOU HAVE 1.187 (1-3/16) inch bearing caps then you are on the wrong page....CLICK HERE



Spicer
CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head
Denny's CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $142.95

FRONT DRIVESHAFT CV Rebuild Kit ... NON Greaseable CV BALL Socket

  • Fits 4X4 FRONT DRIVESHAFT with DANA SPICER CV HEAD
    • RAM 1500
      • 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPICER CV HEAD
    • RAM 2500 and RAM 3500
      • 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPICER CV HEAD
  • DOES NOT FIT 2003 and newer RAM 2500, 3500 AAM 1355 series CV with 1.187 diameter u-joint caps- American Axle Manufacturing front CV Driveshafts

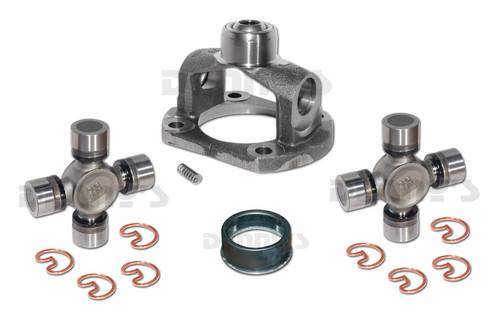

INCLUDES:  Everything you need to Rebuild the 1330 Series SPICER Double Cardan CV

  • (1) DANA SPICER 211913X Non Greaseable 1330 Series Double Cardan CV Flange Yoke with New Spring included
    • Center Needle Bearing Ball Socket fits 1/2 inch stud yoke
    • Bolt Pattern of flange.... 4.25 inches measured diagonally
    • Pilot Diameter of flange... 3.125 inches (3 1/8 inches)
  • (2) DANA SPICER 5-1330X NON Greaseable U-Joints
    • Bearing Cap Diameter = 1.062
    • U-Joint Width = 3.625 inches
    • Outside Snap Rings
  • (1) DANA SPICER 2-86-418 Rubber Boot
  • image/jpegIt is recommended that you install a new rubber boot every time you service the Non Greaseable Double Cardan CV joint.



CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head

Denny's CV913-2 FRONT DRIVESHAFT CV REBUILD KIT fits 1995 to 2005 DODGE Ram 1500, 2500, 3500 with 1.062 u-joint cap diameter Dana Spicer CV Head

You May Also Need These Parts to Complete the Job

DE-15688 Installation Tool for use with Rubber Boot Part Number 2-86-418
$32.95
Dodge CV H Yoke 1330 Series
$53.86 $48.93
