Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

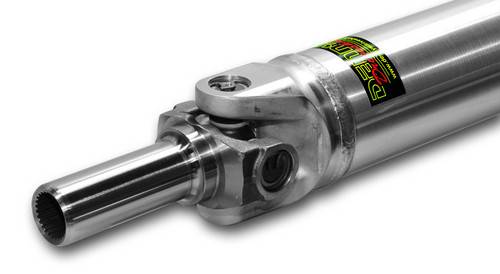

Denny's AL3.5-1310-62 Aluminum Driveshaft 3.5 inch tube diameter complete with Dana Spicer U-joints and 1310 slip yoke UP to 62 inch CL
Part Number:
AL3.5-1310-62


UPC:
Your Cost $675.95
STATUS:  PLEASE CALL TO ORDER

Denny's AL3.5-1310-62

Aluminum Driveshaft 3.5 inch with 1310 Slip Yoke

Includes:

  • 3.5 inch Diameter Tube - 0.125 wall thickness - KDS4-T8 ALUMINUM - Surpasses ASTMB210 specification
  • Spicer or Neapco 1310 series cast SLIP YOKE
  • Dana Spicer NON Greaseable Universal Joints
    • FRONT universal joint 1310 series to match slip yoke
    • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
  • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation
  • Comes Fully Assembled and ready to bolt in!

Dennys
Denny's AL3.5-1310-62 Aluminum Driveshaft 3.5 inch tube diameter complete with Dana Spicer U-joints and 1310 slip yoke UP to 62 inch CL
Denny's AL3.5-1310-63 Aluminum Driveshaft 3.5 inch tube diameter complete with Dana Spicer U-joints and 1310 slip yoke UP to 62 inch CL
STATUS:  PLEASE CALL TO ORDER
YOUR COST:  $675.95

Denny's AL3.5-1310-62

Aluminum Driveshaft 3.5 inch with 1310 Slip Yoke

  • Recommended for use with less than 500 horsepower.

Includes:

  • 3.5 inch Diameter Tube - 0.125 wall thickness - KDS4-T8 ALUMINUM - Surpasses ASTMB210 specification
    • All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
  • Spicer or Neapco 1310 series cast SLIP YOKE
    • Available to fit all 27 and 32 spline GM automatic transmissions
    • Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
    • Available to fit 28 spline Ford C4 and AOD automatics (NOT available in 1310 for 4R70W see 1330 shafts)
    • Available to fit 28 spline T5, T10, Top Loader, Tremec
    • Available to fit 31 spline Ford C6, FMX, Top Loader, Tremec
  • Dana Spicer NON Greaseable Universal Joints
    • FRONT universal joint 1310 series to match slip yoke
    • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
      • Flat Flange Yoke option available for Ford 8.8 and JAG rear
  • All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation.  This is priceless when it comes to customer satisfaction!
  • All Denny's Driveshafts come Fully Assembled and ready to bolt in!
    • Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
      • Please see our Free Lifetime Labor page for details. CLICK HERE



  • MEASUREMENTS ARE REQUIRED TO ORDER THIS SHAFT
    • Please click on the button below and print out the diagram.
    • Please call or email the dimensions to us when you place your order.



>>>>>> For u-bolt or strap and bolt style pinion yokes:

MAXIMUM LENGTH:



image/jpeg


IMPORTANT NOTE:

  • Denny's AL3.5-1310-62 can be made with an optional flat flange yoke if necessary to match your rear end.
  • For example is using a Ford 8.8 or a Jag rear end with the flat flange instead of a pinion yoke.
    • PLEASE CALL or EMAIL for price before ordering.

>>>>>> For FLAT FLANGE style on Ford 8.8 or JAG rear:

MAXIMUM LENGTH:
