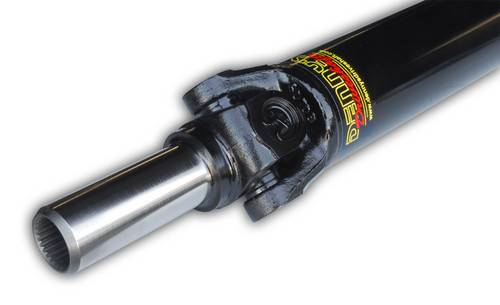

Denny's SRHD3-S1 Street Rod HD Driveshaft 3 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
|
Part Number: SRHD3-S1
UPC:
|
Your Cost
$595.95
STATUS:
PLEASE CALL TO ORDER
|
|
Denny's SRHD3-S1
3 inch Stage 1 - Street Rod HD Driveshaft with Sonnax 1310 Slip Yoke
STAGE 1 Includes:
- 3 inch Diameter Tube - DOM Steel
- SONNAX 1310 series FORGED SLIP YOKE
- Dana Spicer NON Greaseable Universal Joints
- FRONT universal joint 1310 series to match slip yoke
- REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
- All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation
- Comes Fully Assembled and Balanced with slip yoke and universal joints.... ready to bolt in!
|
Denny's SRHD3-S1 Street Rod HD Driveshaft 3 inch Stage 1 complete with Dana Spicer U-Joints and Sonnax 1310 Forged Slip Yoke
|
STATUS: PLEASE CALL TO ORDER
YOUR COST:
$595.95
|
Denny's SRHD3-S1
Street Rod HD Driveshaft 3 inch Stage 1 with Sonnax 1310 Slip Yoke
- STAGE 1 is recommended for use with less than 500 horsepower.
Includes:
- 3 inch Diameter Tube - DOM Steel
- "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
- All Denny's Driveshafts are built using the latest computer controlled welding equipment for the strongest welds possible.
- All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation. This is priceless when it comes to customer satisfaction!
- All Denny's Driveshafts come Fully Assembled and Balanced with slip yoke and universal joints.... ready to bolt in!
- SONNAX 1310 series FORGED SLIP YOKE to fit most of the popular transmissions
- ►Available to fit 27 and 32 spline GM automatic transmissions
- ►Available to fit 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
- ►Available to fit 28 spline Ford C4 and AOD automatics
- ►Available to fit 28 spline for T5, T10, Top Loader, and Tremec with 28 spline output only
- NOT Available in 1310 for DODGE transmisions... Please CLICK HERE for Dodge Driveshafts
- Dana Spicer NON Greaseable Universal Joints
- FRONT universal joint 1310 series to match slip yoke
- REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
- Flat Flange Yoke option available for Ford 8.8 and JAG rear
- MAXIMUM LENGTH for 3 inch is 55 inches for Dimension B6 on Diagram "B"
- Please contact us by email if you require a longer length with a 3 inch tube OD. CLICK HERE
- MAXIMUM LENGTH for 3 inch is 57 inches for Dimension 55 on Diagram "K"
- Please contact us by email if you require a longer length with a 3 inch tube OD. CLICK HERE
-
- Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
-
Please see our Free Lifetime Labor page for details. CLICK HERE
HOW TO MEASURE
You have 2 choices ...see both choices below
CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":
CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 or JAG rear with a FLAT FLANGE.
- PLEASE NOTE: There will be an Additional cost for the correct flange yoke. CLICK HERE for Flange Yokes
- MAXIMUM LENGTH restrictions for SRHD3-S1:
- DIAGRAM "K" ...Number "55" should be approximately 57 inches or less.
- DIAGRAM "L" ...we will also need NUMBERS 58, 59 and 60 on this page to build your order
|
OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!
|
