Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

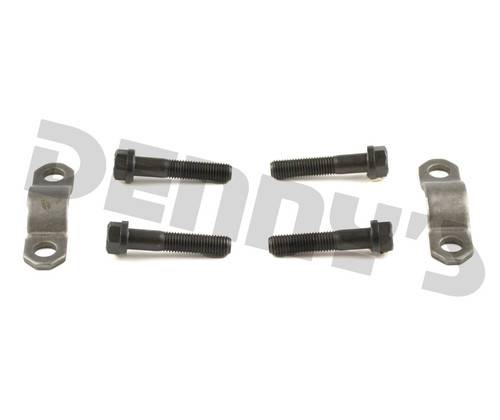

Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
Part #:
2-70-48X
Your Cost $4.95

DANA SPICER 2-70-48X

Fits 1.125 cap x 1.812 CL

  • Strap and Bolt Set for GM 3R series Inside "C" Clip style pinion yokes 7.5, 7.6, 8.5, 8.6, 9.5 inch
  • Comes with 2 straps and 4 bolts.

CENTER to CENTER of BOLT HOLES:  1.812

  • BE SURE your yoke has 4 threaded holes and NO locating tabs

BOLT HOLE DIAMETER: 5/16 inch

Replaces Neapco 1-0025, Precision 530-10



Spicer
Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $4.95

DANA SPICER 2-70-48X

Fits 1.125 cap x 1.812 CL

  • Strap and Bolt Set for GM 3R series Inside "C" Clip style pinion yokes 7.5, 7.6, 8.5, 8.6, 9.5 inch
  • Comes with 2 straps and 4 bolts.

CENTER to CENTER of BOLT HOLES:  1.812

  • BE SURE your yoke has 4 threaded holes and NO locating tabs

BOLT HOLE DIAMETER: 5/16 inch

Replaces Neapco 1-0025, Precision 530-10


Model/Part #:  2-70-48X
Series GM 3R
Fits Brg. Cap Dia. 1.125
Thread Dia. .312-24
Bolt Length 1.5
Strap No.
Bolt No.
C/L to C/L 1.812
Bolt Torque (lb.ft) 30-35
Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke

Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
