Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

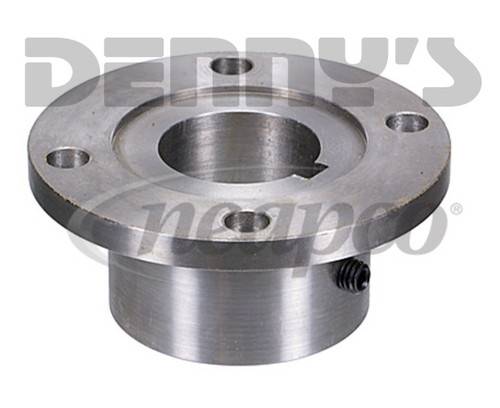

NEAPCO N3-1-1013-10 Companion Flange 1350/1410 Series Fits 1.750 inch Round Shaft with .375 KEY
Part Number:
N3-1-1013-10


UPC:
083869013275
Your Cost $71.66 Sale Price $65.11
You Save $6.55
STATUS:  IN STOCK

NEAPCO N3-1-1013-10

  • COMPANION FLANGE
  • 1350/1410 Series
  • Same as Dana Spicer 3-1-1013-10

Neapco
NEAPCO N3-1-1013-10 Companion Flange 1350/1410 Series Fits 1.750 inch Round Shaft with .375 KEY
NEAPCO N3-1-1013-10 Companion Flange 1350/1410 Series Fits 1.750 inch Round Shaft with .375 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $71.66 Sale Price $65.11
You Save $6.55

NEAPCO N3-1-1013-10

  • COMPANION FLANGE
  • 1350/1410 Series
  • Same as Dana Spicer 3-1-1013-10
Companion Flanges - Circular w/ Round Hole Model/Part #: N3-1-1013-10
D.) Bore Dia. 1.750
K) Keyway Width (nom.) .375
C) Pilot Dia. M=male F=female 2.750-F
Figure 1
Bolt Hole Dia. (D-drilled T=tapped) .438 D
Bolt Holes 4
E) Hub Dia. 2.875
F) Flg. Face to Hub End 2.000
A) Flange Diameter 4.562
B) Bolt Circle Diameter 3.750



Denny's Driveshafts Companion Flange Dimensions

NEAPCO N3-1-1013-10 Companion Flange 1350/1410 Series Fits 1.750 inch Round Shaft with .375 KEY

NEAPCO N3-1-1013-10 Companion Flange 1350/1410 Series Fits 1.750 inch Round Shaft with .375 KEY
