Dana Spicer 706041X Dana 60 Open DIFF CARRIER CASE 4.56 ratio and UP fits FORD HIGH PINION Dana 60 FRONT differential
Part Number:
706041X


UPC:
023913130732

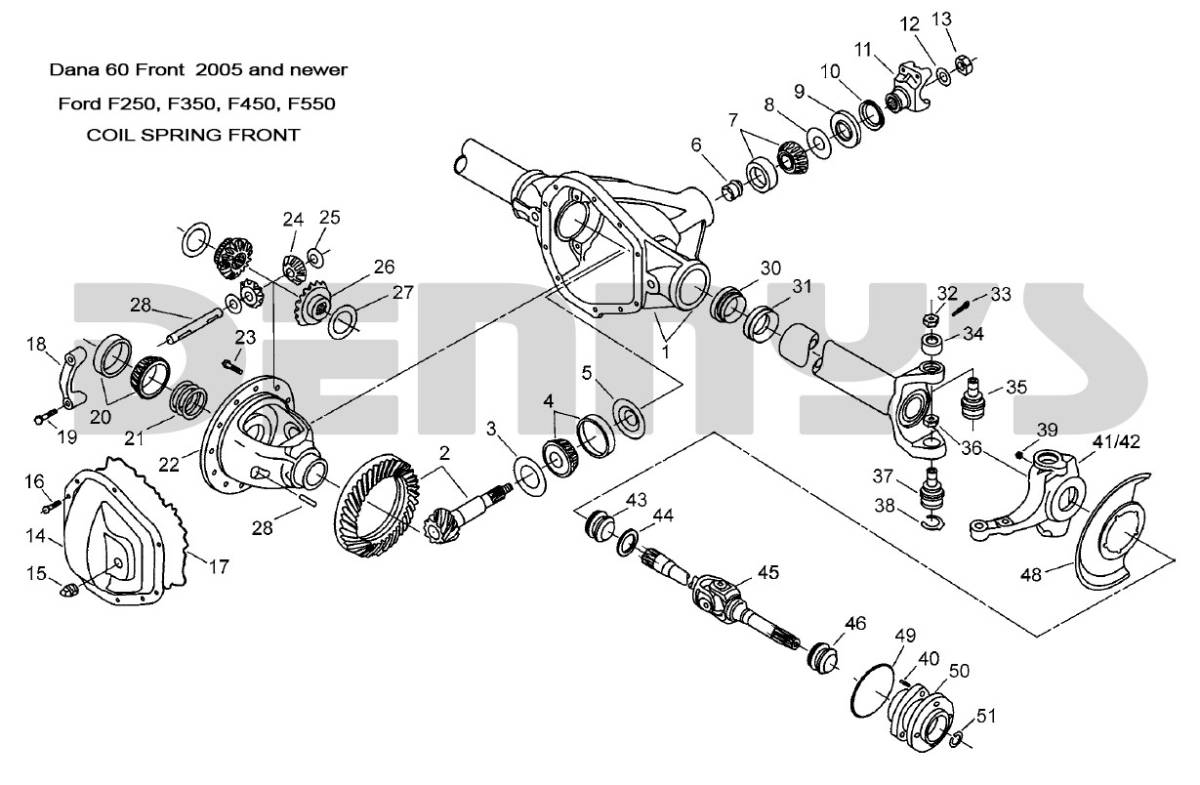

Diagram Number:
22
Your Cost $233.33 Sale Price $210.59
You Save $22.74
STATUS:  FACTORY DIRECT

Dana Spicer 706041X

DIFFERENTIAL CARRIER CASE ONLY

  • Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
  • DANA 60 OPEN differential for FORD HIGH PINION FRONT
    • OPEN DIFF - NOT positraction
    • UNLOADED / EMPTY CASE - NO Internal Parts
    • Not compatible with ABS
    • Fits 4.56 and UP Gear ratios
      • 2.360 inches from end of side bearing mount to face of flange
    • Fits 1.50 - 35 spline axles and spider gears
    • Please select the correct spline Spider Gear Kit to match your axle
      • 2004 and newer Ford DANA Super 60 Front use 708236 Dana Spicer 35 spline internal spider gear kit for 706041X empty case
      • 1998 to 2002 Ford DANA 60 Front use 706702X Dana Spicer 35 spline internal spider gear kit for 706041X empty case
  • 706041X empty case and 708236 spider grear kit are in Dana Spicer loaded case 2005501

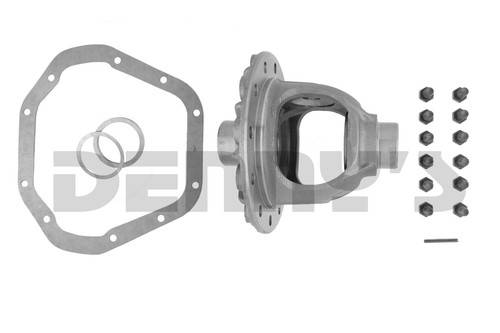

 INCLUDES:

  • (1) 30258 EMPTY CASE
  • (1) 702002 / 708012 SET DIFF BEARING SHIMS
  • (12) 701056X RING GEAR BOLTS
  • (1) 44810 ROLL PIN
  • (1) 34687 COVER GASKET

Spicer
Dana Spicer 706041X Dana 60 Open DIFF CARRIER CASE 4.56 ratio and UP fits FORD HIGH PINION Dana 60 FRONT differential
Dana Spicer 706041X Dana 60 Open Empty DIFF CARRIER CASE 4.56 ratio and UP fits FORD HIGH PINION FRONT differential
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT
YOUR COST:  $233.33 Sale Price $210.59
You Save $22.74
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

Dana Spicer 706041X

DIFFERENTIAL CARRIER CASE ONLY

  • Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
  • DANA 60 OPEN differential for FORD HIGH PINION FRONT
    • OPEN DIFF - NOT positraction
    • UNLOADED/ EMPTY CASE - NO Internal Parts
    • Not compatible with ABS
    • Fits 4.56 and UP Gear ratios
      • 2.360 inches from end of side bearing mount to face of flange
    • Fits 1.50 - 35 spline axles and spider gears
    • Please select the correct spline Spider Gear Kit to match your axle
      • 2004 and newer Ford DANA Super 60 Front use 708236 Dana Spicer 35 spline internal spider gear kit for 706041X empty case
      • 1998 to 2002 Ford DANA 60 Front use 706702X Dana Spicer 35 spline internal spider gear kit for 706041X empty case
  • 706041X empty case and 708236 spider grear kit are in Dana Spicer loaded case 2005501

 INCLUDES:

  • (1) 30258 EMPTY CASE
  • (1) 702002 / 708012 SET DIFF BEARING SHIMS
  • (12) 701056X RING GEAR BOLTS
  • (1) 44810 ROLL PIN
  • (1) 34687 COVER GASKET
Dana Spicer 706041X Dana 60 Open DIFF CARRIER CASE 4.56 ratio and UP fits FORD HIGH PINION Dana 60 FRONT differential

Dana Spicer 706041X Dana 60 Open Empty DIFF CARRIER CASE 4.56 ratio and UP fits FORD HIGH PINION FRONT differential
