DODGE RAM 2500 RAM 3500 4x4 1350 Series Double Cardan CV Flange Yoke fits 2006 to 2010 AAM Front Driveshaft
Part Number:
N3-83-3281X


UPC:
083869012674
Your Cost $114.81 Sale Price $107.40
You Save $7.41
STATUS:  IN STOCK - FREE SHIPPING

DODGE RAM 2500 RAM 3500 4x4

1350 Series Double Cardan CV Flange Yoke

Fits 2006 to 2010 AAM Front Driveshaft



IMPORTANT: YOU MUST MEASURE....to order the correct parts

YOU NEED TO KNOW if you have 1.062 (1-1/16) or 1.187 (1-3/16) bearing caps in your double cardan on your front driveshaft

  • IF YOU HAVE 1.062 (1-1/16) inch bearing caps then you are on the wrong page....CLICK HERE
  • IF YOU HAVE 1.187 (1-3/16) inch bearing caps then this is the correct part for your 2003 to 2010 Ram Front Driveshaft





Neapco
DODGE RAM 2500 RAM 3500 4x4 1350 Series Double Cardan CV Flange Yoke fits 2006 to 2010 AAM Front Driveshaft
DODGE RAM 2500 RAM 3500 4x4 1350 Series Double Cardan CV Flange Yoke fits 2006 to 2010 AAM Front Driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $114.81 Sale Price $107.40
You Save $7.41

DODGE RAM 2500 RAM 3500 4x4

1350 Series Double Cardan CV Flange Yoke

Fits 2006 to 2010 AAM Front Driveshaft

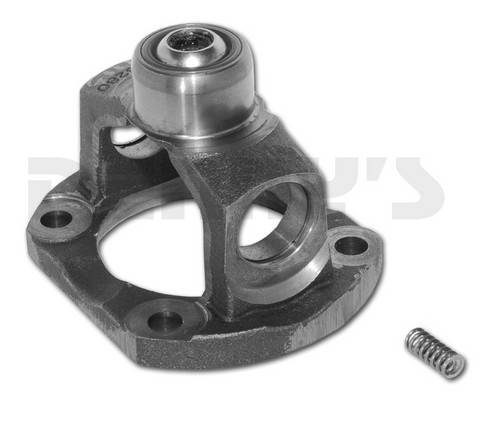

DODGE Double Cardan CV Flange Yoke 1350 Series.  Non Greaseable Maintenance Free design. Mounts to any Dodge Double Cardan CV style transfer case flange.  Use this CV flange yoke to attach a 1350 Series Double Cardan CV driveshaft to a Dodge 4x4 Transfer Case.

Typically found on Dodge 4x4 front driveshafts with outside snap ring style 1350 series universal joints.

  • 1350 Series Double Cardan CV Flange Yoke

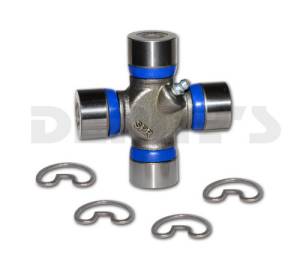

  • Use with 1350 Series U-Joints listed below.

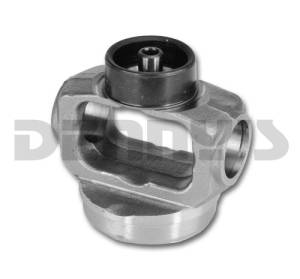

  • Needle Bearing Ball Socket fits 1/2 inch stud yoke
  • Maintenance Free
  • Comes with New Spring included
  • Bolt Pattern.... 4.25 inches measured diagonally
  • Pilot Diameter... 3.125 inches (3 1/8 inches)
  • Bearing cap diameter is 1.187 (1 3/16th) for all 1350 series CV Flange yokes
  • Centering Yoke Fits 1350 Series Universal Joint
    • Dimension between snap rings on centering yoke is (3.625 inches) 3 5/8 inches
    • Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap



image/jpegIt is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot.

DODGE RAM 2500 RAM 3500 4x4 1350 Series Double Cardan CV Flange Yoke fits 2006 to 2010 AAM Front Driveshaft

DODGE RAM 2500 RAM 3500 4x4 1350 Series Double Cardan CV Flange Yoke fits 2006 to 2010 AAM Front Driveshaft

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge
