DANA SPICER 2-2-1309 Flange Yoke 1310 Series
Part Number:
2-2-1309


UPC:
023913231675
Your Cost $52.48 Sale Price $43.95
You Save $8.53
STATUS:  IN STOCK

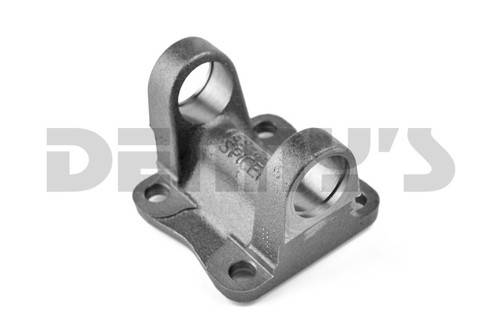

DANA SPICER 2-2-1309

1310 Series Flange Yoke




Spicer
DANA SPICER 2-2-1309 Flange Yoke 1310 Series
DANA SPICER 2-2-1309 Flange Yoke 1310 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $52.48 Sale Price $43.95
You Save $8.53

DANA SPICER 2-2-1309

1310Series Flange Yoke

  • A - Flange or Swing Diameter = 4.140 inches
  • B - Bolt Circle Diameter = 3.198 inches
    • Bolt Hole Diameter = 0.400 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 1.968 inches
    • Center Pilot = MALE
  • Series = 1310
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.219 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.781 inches
  • X - 2.265 inches
  • Y - 2.265 inches
  • Special Notes: 10 mm bolt holes, equally spaced





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-1309 Flange Yoke 1310 Series

DANA SPICER 2-2-1309 Flange Yoke 1310 Series
