9231499 Pinion Yoke 7290 series fits 7.25 and 8.25 Dodge with 27 spline pinion OE cast replacement for 7-1/4 and 8-1/4 inch
Part Number:
9231499


UPC:
Your Cost $129.55
STATUS:  IN STOCK - FREE SHIPPING

9231499

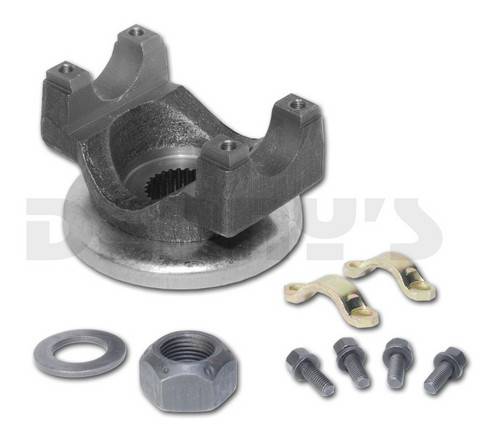

Pinion Yoke 7290 Series

  • Fits DODGE 7.25, 8.25 inch
    • Fits Dodge, Plymouth and Chrysler 7-1/4 and 8-1/4 inch rear ends with 27 spline pinion gear
  • Fits 7290 Series universal joint DODGE "Large" U-joint
    • 24 = 2.625 between flats where "C" clip locks u-joint in place
    • 22 = 1.125 Bearing Cap Diameter
  • 27 spline
  • Cast steel same as OEM

INCLUDES

  • Pinion nut and washer
  • 7290 series strap and bolt set.

DIMENSIONS

  • 21A = 2.937 inch
  • 25 = 1.685 inch
  • Length through spline hole =  1.062 inch
    • full spline - no counterbore
  • 23 =  1.170 inch
  • Washer OD = 1.500 inch
  • Washer ID =  .900 inch
  • Washer thickness =  .120 inch
  • Socket wrench size for nut =  1-5/16 inch
