NEAPCO N3-83-024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on transfer case flange

Part Number:
N3-83-024X

UPC:

083869017365

Your Cost $96.25

STATUS: IN STOCK

NEAPCO N3-83-024X

Replaces Dana Spicer 212024X

FORD Double Cardan CV Flange Yoke 1350 Series. Non Greaseable Maintenance Free design. Mounts to any Ford Double Cardan CV style transfer case flange. Use this CV flange yoke to attach a 1350 Series Spicer Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot.

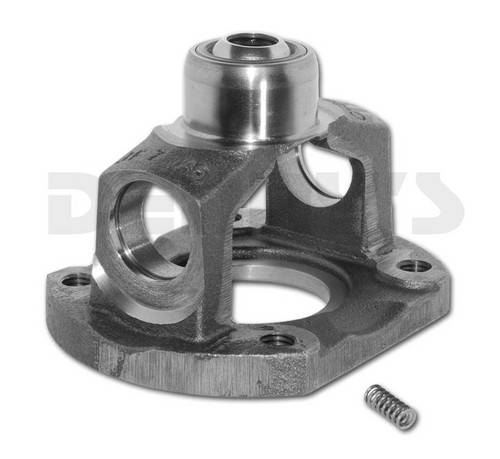

NEAPCO N3-83-024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on transfer case flange

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $96.25

NEAPCO N3-83-024X

Replaces Dana Spicer 212024X

FORD Double Cardan CV Flange Yoke 1350 Series. Non Greaseable Maintenance Free design. Mounts to any Ford Double Cardan CV style transfer case flange.

Use this CV flange yoke to attach a 1350 Series Spicer Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.

1350 Series Double Cardan CV Flange Yoke
Mounting holes are THREADED to accept OEM Ford bolts
DOES NOT FIT any greaseable style 1350 series stud yokes
DOES NOT FIT OEM Driveshaft with press on ball.
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Maintenance Free
Comes with New Spring included
Bolt Pattern.... 4.25 inches measured diagonally
Pilot Diameter... 2 inches
Centering Yoke Fits 1350 Series Universal Joint
- Dimension between snap rings on centering yoke is (3.625 inches) 3 5/8 inches
- Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap

IMPORTANT: The "SPICER" name must be visible on your original H-Yoke and Flange yoke to use these replacement parts.

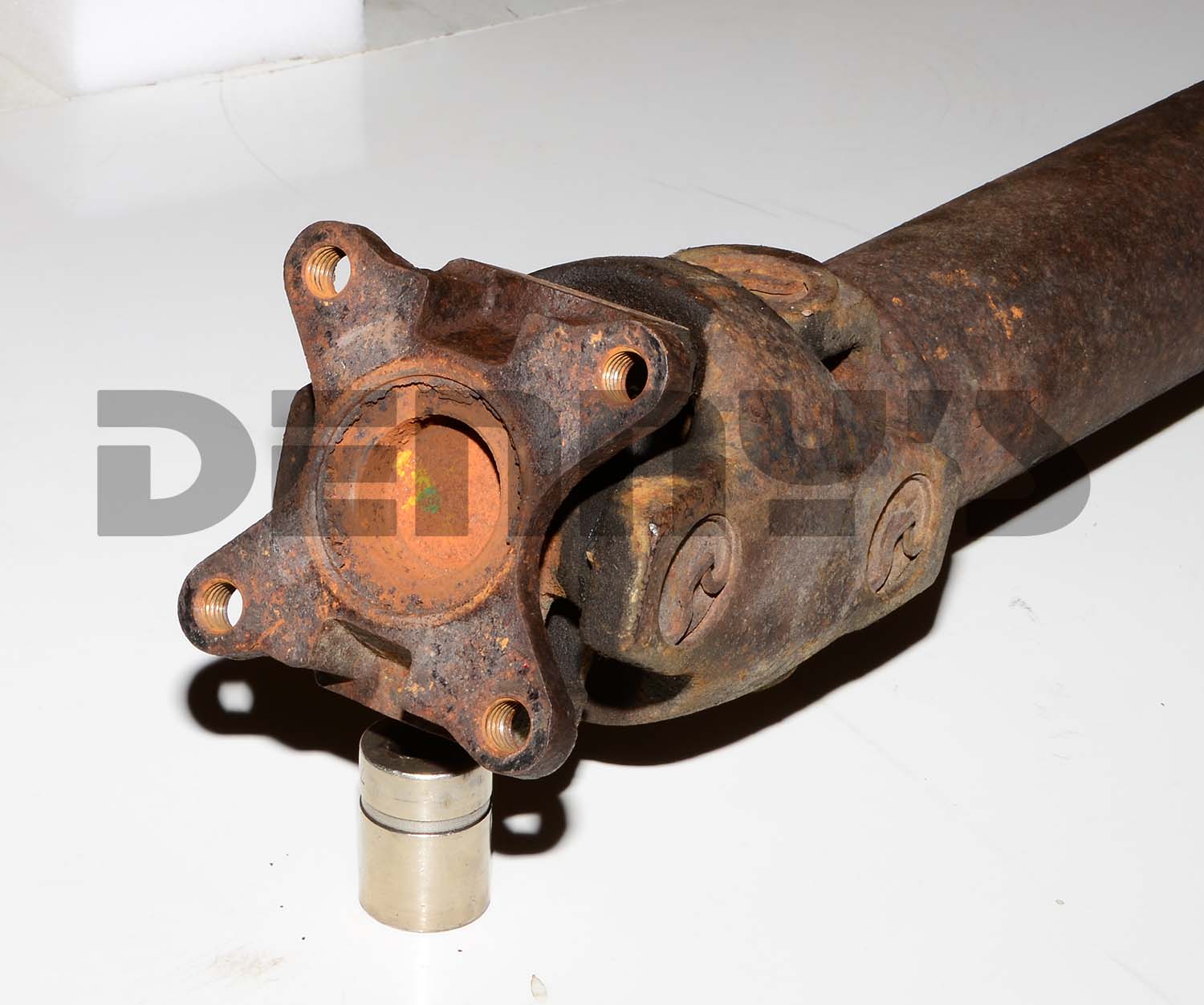

If you have a driveshaft that looks like the one in these photos then this cv will NOT work.

Please notice the shape of the mounting flange...if yours looks like the mounting flange in the photo on the left then this CV will not fit.

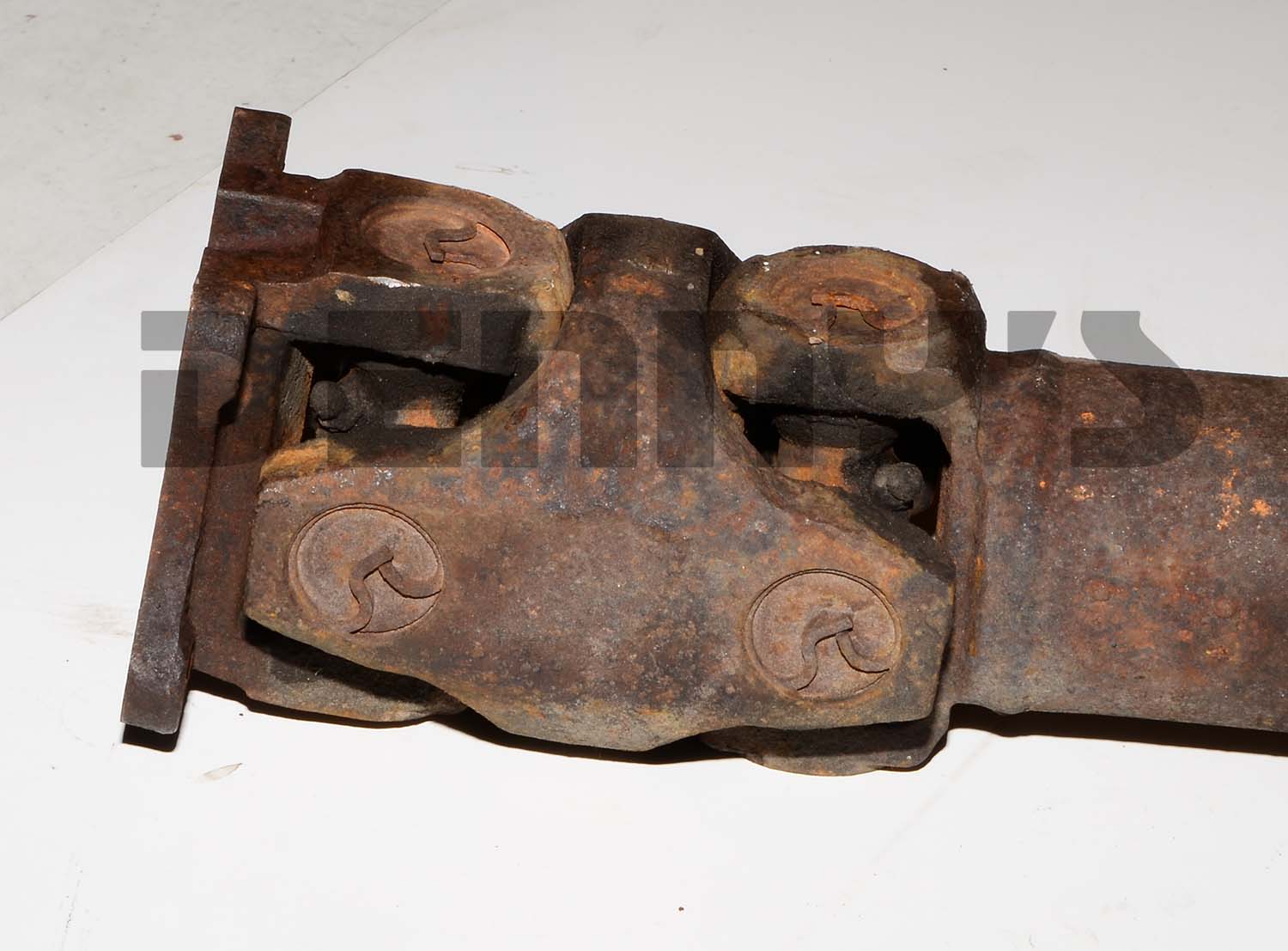

Please notice the squared shape of the H-Yoke around the holes for the u-joint cap and snap ring in the photo on the right. ... If yours has the squared shape then this CV will not fit.
If you have a driveshaft with a pressed on ball on the cv stud yoke then this cv kit will NOT work.

NEAPCO N3-83-024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on transfer case flange
