Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck


Mopar Cars & Trucks > PINION YOKES

Denny's DODGE, PLYMOUTH & CHRYSLER Pinion Yokes



                                                  OEM Replacement Rear End Pinion Yokes with straps & bolts

image/jpegDodge, Plymouth or Chrysler  Replacement OEM Pinion yokes come complete with (4) bolts (2) straps (1) pinion washer (1) pinion nut and attached dust shield. These have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals.  Available in 7290 for the 7.25 and 8.25 inch with 27 splines and 7260 & 7290 series for the 8.75 inch 10 & 29 spline and also the Dana 60 29 spline.  For series description please see bottom of this page.

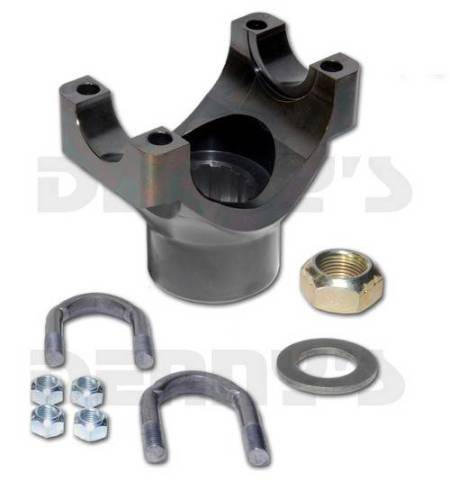

Chrome Moly Rear End Pinion Yokes 7290 Series with U-Bolts

image/jpeg7290 Series Chrome Moly is the ONLY way to go when you want to use your existing driveshaft and get rid of the Dodge, Plymouth or Chrysler OEM cast yoke and those tiny bolts and straps. Replace your weak cast OEM pinion yoke with something that will handle your horsepower without worry. No more broken pinion yokes with this one. 7290 series Chrome Moly pinion yoke comes with u-bolt set, pinion nut and washer.




Chrome Moly Rear End Pinion Yokes 1350 Series with U-Bolts

image/jpeg1350 Series Chrome Moly is the ONLY way to go when you want the best in your Mopar!  Replace your weak cast Dodge, Plymouth or Chrysler OEM pinion yoke with something that will handle your horsepower without worry. No more broken pinion yokes with this one.  1350 series Chrome Moly pinion yoke comes with u-bolt set, pinion nut and washer.





Fast and Convenient Online Ordering Below


PINION YOKES

AAM 9.25 inch FRONT DODGE RAM

7.25 and 8.25 inch REAR with 27 Spline Pinion

8.75 REAR with 10 Spline Pinion

8.75 REAR with 29 Spline Pinion

DANA 44 with 26 Spline Pinion

1310 Series for Dana 44

1330 Series for Dana 44

1350 Series for Dana 44

DANA 60 FRONT or REAR with 10 or 29 Spline Pinion

7290 Series for Dana 60

1310 Series for Dana 60

1330 Series for Dana 60

1350 Series for Dana 60

1350 Series - 10 SPLINE

1350 Series - 29 SPLINE

1410 Series for Dana 60

1410 Series - 10 SPLINE

1410 Series - 29 SPLINE


CLICK HERE for a COMPLETE listing of all PINION YOKES


What is the difference between the Chrysler 7260 and 7290 series?

The 7260 and 7290 series are the two sizes that are commonly found on Chrysler products. They represent the two stock sizes that have been used for many years.

  • The 7260 series is the “small” Chrysler u-joint size
    • 2 1/8 inch between flats on yoke with 1.078 inch bearing cap diameter
  • The 7290 series is the “big” Chrysler u-joint size
    • 2 5/8 inch between flats on yoke with 1.125 inch bearing cap diameter

The 7260 series is similar in size to the 1310 series and the 7290 is similar in size to the 1330 series.  They both utilize the inside “C” clip design to hold the u-joint within the yoke flats whereas the 1310 and 1330 use the outside snap ring design.  Both 7260 and 7290 utilize front and rear end pinion yokes and bolt on transfer case yokes with NO LOCATING TABS.


PLEASE NOTE:  For faster service please order all parts online
