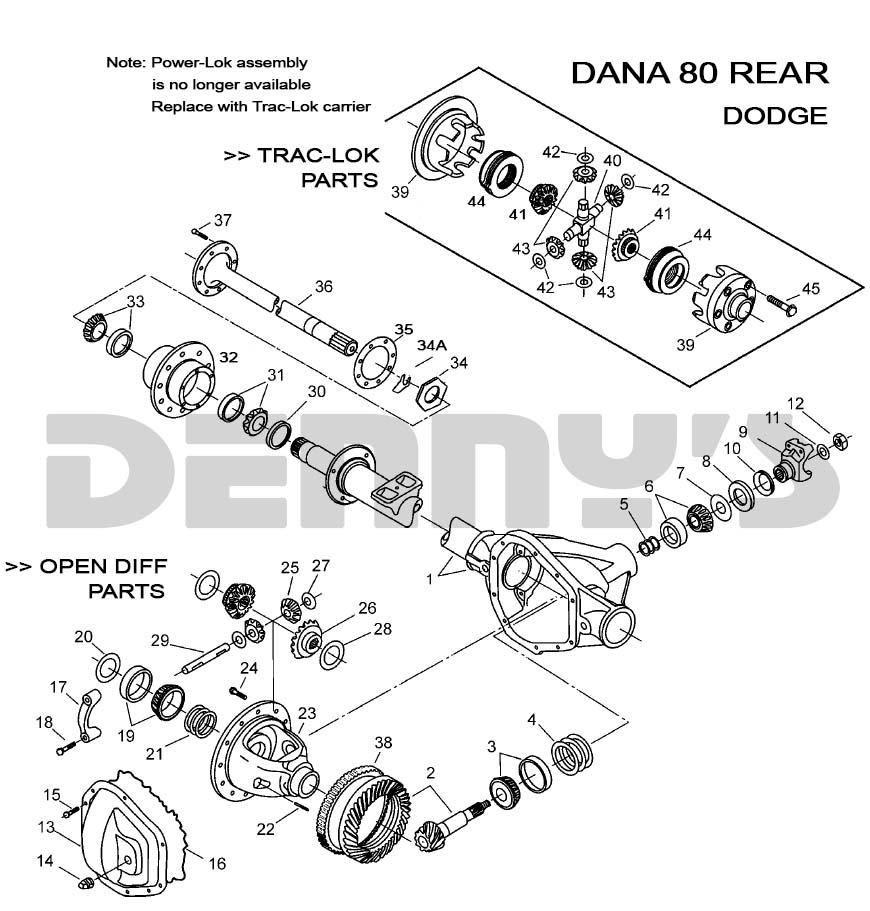

Dana 80 Rear end exploded view Dodge Ram at Denny's Driveshafts

Please SCROLL DOWN to see all parts for Dodge Dana 80 Rear

Diagram #	Description	Diagram #	Description
1	Housing - Reference Only	29	Cross pin - Open diff
2	Gear Set - See Ring and Pinion Gear	30	Hub Seal
3	Inner Pinion Bearing	31	Inner Hub Bearing
4	Shims	32	Hub
5	Shims	33	Outer Hub Bearing
6	Outer Pinion Bearing
7	Thrustwasher	34	Retaining Nut - discontinued
8	Pinion Seal	34A	Locking Wedge
9	Pinion Yoke	35	Gasket
10	Dust shield - comes with pinion yoke	36	Axle Shaft
11	Washer	37	Bolt
12	Pinion Nut	38	ABS Tone Ring - See 23 or 39
13	Diff Cover	39	Diff Case - Trac Lok
14	Fill Plug - not sold separately see diff cover
15	Cover Bolt	40-44	Spider Gear Kit - Trac Lok Posi
16	RTV	45	Bolt
17	Bearing Cap - not sold separately
18	Bolt for bearing cap - not sold separately	Not Shown	Power-Lok Posi Plate Kit
19	Diff side bearings
20	Bearing Spacer
21	Shims
22	Roll Pin
23	Diff Case - Open Diff
24	Ring Gear Bolt - See 23 or 39
25-29	Spider Gear Kit - Open Diff
25	Small pinion gear ...see kit
26	Side Gear ...see kit
27	Thrust washer - small pinion OPEN
28	Thrust washer - side gear OPEN

Please SCROLL DOWN to see all parts for Dodge Dana 80 Rear

DANA 80 REAR - DODGE

AXLE SHAFT

	Dana Spicer 45553-1 Axle Shaft 35 splines for Dodge 2500 Dana 80 rear 36.65 inches 8 x 3.96 bolt pattern CLICK HERE for More Details Part Number: 45553-1 Diagram Number: 36	$265.19

	Dana Spicer 45553-2 Axle Shaft 35 splines for Dodge 3500 Dana 80 rear 39 inches 8 x 3.96 bolt pattern CLICK HERE for More Details Part Number: 45553-2 Diagram Number: 36	$295.95	IN STOCK FREE SHIPPING

	Dana Spicer 45553-3 Axle Shaft 35 splines for Dodge 3500 Dana 80 rear 36.5 inches 8 x 3.96 bolt pattern CLICK HERE for More Details Part Number: 45553-3 Diagram Number: 36	$295.95	SOLD OUT

BEARINGS - SEALS - SHIMS

MASTER BEARING KIT

	Dana Spicer 10043645 Master Bearing kit for Dana 80 REAR with 4.125 in. pinion bearing fits 1994 to 2002 DODGE RAM 2500, 3500, B3500 CLICK HERE for More Details Part Number: 10043645	$295.95	IN STOCK FREE SHIPPING

	DRK-337MK Master Differential Bearing Kit fits Chevy, GMC, Ford, Dodge Dana 80 rear end with 4.125 OD pinion bearing CLICK HERE for More Details Part Number: DRK-337MK	~~$290.95~~ $259.95	IN STOCK FREE SHIPPING

DIFF BEARINGS

	DANA SPICER 706070X Bearing Kit diff carrier bearings includes (2) 469 and (2) 453X CLICK HERE for More Details Part Number: 706070X Diagram Number: 19	~~$99.49~~ $83.32	IN STOCK

PINION BEARINGS

	Dana Spicer 42430 THRUST WASHER 2.460 inch OD for Outer Pinion Bearing for DANA 80 Rear CLICK HERE for More Details Part Number: 42430 Diagram Number: 7	$1.94	IN STOCK

	Timken M802011 Tapered Roller Bearing Cup Outer Pinion Bearing Dana 80 Dodge CLICK HERE for More Details Part Number: M802011 Diagram Number: 6	$11.91	IN STOCK

	Timken M802048 Tapered Roller Bearing Cone Outer Pinion Bearing Dana 80 Dodge CLICK HERE for More Details Part Number: M802048 Diagram Number: 6	$24.29	IN STOCK

	Dana Spicer 707064X Outer pinion Bearing Kit includes M802048 and M802011 CLICK HERE for More Details Part Number: 707064X Diagram Number: 6	$28.89	IN STOCK

	Dana Spicer 707065X Inner Pinion Bearing Kit 4.125 in. OD fits Chevy, GMC, Ford and Dodge with Dana 80 rear end includes HM807046 and HM807010 CLICK HERE for More Details Part Number: 707065X Diagram Number: 3	~~$103.14~~ $86.38	IN STOCK

PINION SEALS

	DANA SPICER 46411 Pinion Seal for 1994 to 2002 Dodge DANA 80 rear Replaces OE Part Number 04773237AB CLICK HERE for More Details Part Number: 46411 Diagram Number: 8	$18.35	IN STOCK

	DANA SPICER 2011840 Pinion Seal for 1994 to 2003 Dodge DANA 80 rear CLICK HERE for More Details Part Number: 2011840 Diagram Number: 8	$22.95	IN STOCK

	DANA SPICER 50168 Pinion Seal for DANA 80 fits 2000 - 2001 DODGE Replaces OE Part Number 5015618AB CLICK HERE for More Details Part Number: 50168 Diagram Number: 8	~~$43.78~~ $36.66	IN STOCK

	DANA SPICER 50563 Pinion Seal for DANA 80 fits 2001 - 2002 DODGE Replaces OE Part Number 5073944AA CLICK HERE for More Details Part Number: 50563 Diagram Number: 8	$24.27	IN STOCK

	Dana Spicer 49532 CLICK HERE for More Details Part Number: 49532 Diagram Number: 10	$12.50	IN STOCK

WHEEL HUB BEARINGS - SEALS - NUTS - GASKETS

	Dana Spicer 35256 Wheel Hub Seal 4.250 OD fits Dana 80 rear CLICK HERE for More Details Part Number: 35256 Diagram Number: 30	$23.05	IN STOCK

	Dana Spicer 46545 Locking Wedge for Rear Axle Spindle Nut fits 1994 to 2003 Dodge 2500, 3500 with Dana 60, 61, 70, 70B, 70HD, 80 rear end CLICK HERE for More Details Part Number: 46545 Diagram Number: 34A	$5.00	IN STOCK

	Dana Spicer 45720 BOLT for AXLE HUB .437 -14 fits Dodge Dana 80 Rear with Full Float axle shafts that use 39697 gasket CLICK HERE for More Details Part Number: 45720 Diagram Number: 37	$1.46	IN STOCK

	Dana Spicer 39697 Rear Axle Flange Gasket 4.687 inch OD for Dodge with Dana 80 rear axle CLICK HERE for More Details Part Number: 39697 Diagram Number: 35	$1.75	SOLD OUT

	Dana Spicer 47507 Wheel Hub Seal 3.880 OD 2.875 ID fits Dana 80 Rear CLICK HERE for More Details Part Number: 47507 Diagram Number: 30	$8.58	IN STOCK

DIFF PARTS

ABS TONE RING

	Dana Spicer 42414 ABS Wheel Speed Sensor TONE RING for Dodge Dana 80 REAR end fits 1994 to 2002 CLICK HERE for More Details Part Number: 42414 Diagram Number: 38	~~$74.94~~ $62.77	SOLD OUT

DIFF COVER

	Dana Spicer 10023537 Nodular Iron Diff Cover for Dana 80 rear CLICK HERE for More Details Part Number: 10023537 Diagram Number: 13	~~$215.32~~ $179.32	IN STOCK FREE SHIPPING

	Dana Spicer 2013834 Finned Aluminum Differential Cover Kit for Dana 80 rear end fits Chevy, GMC, Dodge, RAM and Ford CLICK HERE for More Details Part Number: 2013834 Diagram Number: 13	$148.95	FACTORY DIRECT

	Dana Spicer 34822 Diff Cover BOLT .375-16 fits Dana 60, Super 60, Dana 70, Super 70, Dana 80 CLICK HERE for More Details Part Number: 34822 Diagram Number: 15	$1.85	IN STOCK

	Dana Spicer 38615 Loctite SI 5699 High Performance RTV Silicone Gasket Maker Sealer CLICK HERE for More Details Part Number: 38615 Diagram Number: 16	$7.65

	Dana Spicer 47508-1 Diff Cover BOLT .375-16 fits Stamped Steel cover on 1999 and newer Dodge Dana 80 rear end CLICK HERE for More Details Part Number: 47508-1 Diagram Number: 15	$1.12	IN STOCK

	Dana Spicer 707231X Differential Cover Kit for Dana 80 rear end fill plug hole .375 in. BELOW axle centerline fits Chevy, GMC, Dodge, Ram and Ford CLICK HERE for More Details Part Number: 707231X Diagram Number: 13	$68.78	IN STOCK

	Dana Spicer 707479X Differential Cover Kit for Dana 80 rear end fill plug hole .217 in. BELOW axle centerline fits Chevy, GMC, Dodge, RAM and Ford CLICK HERE for More Details Part Number: 707479X Diagram Number: 13	~~$221.38~~ $145.40	IN STOCK

	Dana Spicer 708151 Diff Cover Dana 80 rear has fill plug 0.271 below axle centerline CLICK HERE for More Details Part Number: 708151 Diagram Number: 13	$55.04	IN STOCK

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10 Diagram Number: 16	$4.94	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40 Diagram Number: 16	$23.64	IN STOCK

SHIMS

	Dana Spicer 707068X Shim Kit for Dana 80 rear end with 4.125 inch OD inner pinion bearing race CLICK HERE for More Details Part Number: 707068X	~~$55.46~~ $46.44	IN STOCK

	Dana Spicer 707069X Outboard Spacers for differential side bearings 4.120 in. OD - See number 20 CLICK HERE for More Details Part Number: 707069X Diagram Number: 20	$18.59	IN STOCK

	DANA SPICER 708035 Differential Carrier bearing SHIM KIT for Dana 70, 80 - See number 21 CLICK HERE for More Details Part Number: 708035 Diagram Number: 21	$28.25	IN STOCK

	Dana Spicer 707066X Pinion bearing shim kit for Dodge Dana 80 rear end - See numbers 4, 5, 11, 12 CLICK HERE for More Details Part Number: 707066X Diagram Number: 4,5,11,12	$71.63

	Dana Spicer 708036 SHIM KIT fits Dana 80 REAR end 1994 to 2001 RAM 2500, 3500 - See numbers 4, 5, 11, 12, 21 CLICK HERE for More Details Part Number: 708036 Diagram Number: 4,5,11,12,21	$58.52	IN STOCK

OPEN DIFF

	Dana Spicer 34729 Thrust Washer for side spider gear Open Standard Diff fits Dana 80 CLICK HERE for More Details Part Number: 34729 Diagram Number: 28	$2.35	IN STOCK

	Dana Spicer 35082 Thrust Washer for small spider gear Open Standard Diff fits Dana 80 CLICK HERE for More Details Part Number: 35082 Diagram Number: 27	$2.40	IN STOCK

	Dana Spicer 42414 ABS Wheel Speed Sensor TONE RING for Dodge Dana 80 REAR end fits 1994 to 2002 CLICK HERE for More Details Part Number: 42414 Diagram Number: 38	~~$74.94~~ $62.77	SOLD OUT

	Dana Spicer 42433 Ring Gear BOLT fits Dana 80 rear end CLICK HERE for More Details Part Number: 42433 Diagram Number: 24	$4.47	IN STOCK

	Dana Spicer 46640 Cross Pin for Open Standard Diff fits Dana 80 CLICK HERE for More Details Part Number: 46640 Diagram Number: 29	$23.96	IN STOCK

	Dana Spicer 47024 ROLL PIN for Diff Spider Cross shaft fits Dana 70, 80 Rear Axle CLICK HERE for More Details Part Number: 47024 Diagram Number: 22	$3.95	IN STOCK

	Dana Spicer 707063X Spider Gear Kit fits 1.5 inch 35 spline axles Open Standard Diff fits Dana 80 CLICK HERE for More Details Part Number: 707063X Diagram Number: 22,24-29	~~$202.32~~ $189.44	IN STOCK FREE SHIPPING

	Dana Spicer 708028 OPEN STANDARD EMPTY Diff case fits 3.73 and down use with 35 spline axles CLICK HERE for More Details Part Number: 708028 Diagram Number: 23	~~$332.87~~ $298.22	IN STOCK FREE SHIPPING

	Dana Spicer 708027 DANA 80 Open Differential Carrier Loaded Assembly for 1.5 inch 35 spline axles fits 3.73 ratio and down - FREE SHIPPING CLICK HERE for More Details Part Number: 708027 Diagram Number: 23	~~$1,420.65~~ $1,369.95

	Dana Spicer 708031 DANA 80 Open Differential Carrier Loaded Assembly for 1.5 inch 35 spline axles fits 4.10 ratio and up - FREE SHIPPING CLICK HERE for More Details Part Number: 708031 Diagram Number: 23	~~$854.58~~ $692.71	IN STOCK FREE SHIPPING

TRAC-LOK DIFF

	Dana Spicer 2003819 Trac Lok Positraction Clutch Plate KIT for Dana 70, Dana 80 CLICK HERE for More Details Part Number: 2003819 Diagram Number: 44	~~$389.60~~ $326.29	IN STOCK FREE SHIPPING

	Dana Spicer 2003857 Trac Lok positraction diff internal parts and spider gear kit fits Dana 80 rear CLICK HERE for More Details Part Number: 2003857 Diagram Number: 40-44	~~$473.33~~ $396.41	SOLD OUT

	Dana Spicer 41610-1 Bolt for Trac Lok diff carrier CLICK HERE for More Details Part Number: 41610-1 Diagram Number: 45	$2.53	IN STOCK

	Dana Spicer 42414 ABS Wheel Speed Sensor TONE RING for Dodge Dana 80 REAR end fits 1994 to 2002 CLICK HERE for More Details Part Number: 42414 Diagram Number: 38	~~$74.94~~ $62.77	SOLD OUT

	Dana Spicer 42433 Ring Gear BOLT fits Dana 80 rear end CLICK HERE for More Details Part Number: 42433 Diagram Number: 24	$4.47	IN STOCK

	Dana Spicer 2011842 DANA 80 TRAC LOK Differential Carrier Limited Slip Positraction Loaded Assembly for 1998 to 2001 Dodge D2500, D3500, W2500, W3500 w/abs with 1.5 inch 35 spline axles fits 3.73 ratio and 3.54 ratio gears - FREE SHIPPING CLICK HERE for More Details Part Number: 2011842 Diagram Number: 39	~~$1,200.38~~ $925.95	IN STOCK FREE SHIPPING

	Dana Spicer 2011841 DANA 80 TRAC LOK Differential Carrier Limited Slip Positraction Loaded Assembly for 1994 to 2002 Dodge Ram 2500, 3500 with 1.5 inch 35 spline axles fits 4.10 ratio and up - FREE SHIPPING CLICK HERE for More Details Part Number: 2011841 Diagram Number: 39	~~$1,350.02~~ $995.95	IN STOCK FREE SHIPPING

POWER LOK DIFF

	Dana Spicer 701129X POWR LOK DANA 80 Positraction clutch plate kit for POWER LOCK CLICK HERE for More Details Part Number: 701129X	~~$229.64~~ $219.94	IN STOCK FREE SHIPPING

GEARS

	Dana Spicer 708026-1 Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 80 DODGE - FREE SHIPPING CLICK HERE for More Details Part Number: 708026-1	$1,123.24	FACTORY DIRECT

	Dana Spicer 708026-2 Ring and Pinion Gear Set Kit 4.10 Ratio (41-10) for Dana 80 DODGE - FREE SHIPPING CLICK HERE for More Details Part Number: 708026-2	$648.81

	Dana Spicer 708026-3 Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 80 DODGE - FREE SHIPPING CLICK HERE for More Details Part Number: 708026-3	$1,230.84

	Dana Spicer 708026-4 Ring and Pinion Gear Set Kit 4.10 Ratio (41-10) for Dana 80 DODGE - FREE SHIPPING CLICK HERE for More Details Part Number: 708026-4	$689.54

	Dana Spicer 708150-1 Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 80 DODGE - FREE SHIPPING CLICK HERE for More Details Part Number: 708150-1	$1,075.95

	Dana Spicer 708150-2 Ring and Pinion Gear Set Kit 4.10 Ratio (41-10) for Dana 80 DODGE - FREE SHIPPING CLICK HERE for More Details Part Number: 708150-2	$945.95

	Dana Spicer 74375X Ring and Pinion Gear Set 3.31 Ratio (43-13) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 74375X	~~$1,185.42~~ $895.63

	Dana Spicer 2018597 THIN Ring and Pinion Gear Set 3.73 Ratio (41-11) for Dana 80 FORD Rear end - FREE SHIPPING CLICK HERE for More Details Part Number: 2018597	~~$445.96~~ $395.99

	Dana Spicer 2013526 Ring and Pinion Gear Set 4.10 Ratio (41-10) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 2013526	~~$583.13~~ $491.24

	Dana Spicer 80651 Ring and Pinion Gear Set 4.30 Ratio (43-10) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 80651	~~$389.95~~ $375.74	FACTORY DIRECT

	Dana Spicer 80730-5 Ring and Pinion Gear Set 4.63 Ratio (37-08) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 80730-5	$555.56

	Dana Spicer 84002-5 Ring and Pinion Gear Set 4.88 Ratio (39-08) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 84002-5	~~$428.33~~ $375.35

	Dana Spicer 75621X Ring and Pinion Gear Set 5.13 Ratio (41-08) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 75621X	~~$904.39~~ $729.88

	Dana Spicer 84003 Ring and Pinion Gear Set 5.38 Ratio (43-08) fits 1988 to 2016 Dana 80 Rear end FORD, DODGE, GMC and CHEVY - FREE SHIPPING CLICK HERE for More Details Part Number: 84003	~~$483.42~~ $422.24

PINION YOKE/FLANGE

	Dana Spicer 2001855 PINION NUT fits Chevy, GMC, Ford, Dodge DANA 80 CLICK HERE for More Details Part Number: 2001855 Diagram Number: 12	$9.60	IN STOCK

	Dana Spicer 37104 PINION WASHER fits Chevy, GMC, Ford, Dodge DANA 80 rear end CLICK HERE for More Details Part Number: 37104 Diagram Number: 11	$2.35	IN STOCK

	Dana Spicer 3-4-14371-1 Pinion Yoke Without dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion CLICK HERE for More Details Part Number: 3-4-14371-1 Diagram Number: 9	$133.62	SOLD OUT

	Dana Spicer 3-4-14391-1X Pinion Yoke With dust shield 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion CLICK HERE for More Details Part Number: 3-4-14391-1X Diagram Number: 9	$76.95	SOLD OUT

	Dana Spicer 3-4-11081-1X Pinion Yoke 1410 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion CLICK HERE for More Details Part Number: 3-4-11081-1X Diagram Number: 9	$145.96	IN STOCK FREE SHIPPING

	Dana Spicer 3-4-11281-1X Pinion Yoke 1480 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion CLICK HERE for More Details Part Number: 3-4-11281-1X Diagram Number: 9	$87.29	IN STOCK

	Dana Spicer 4-4-6851-1X Pinion Yoke 1550 Series fits Chevy, GMC, Ford, Dodge Dana 80 with 37 spline pinion CLICK HERE for More Details Part Number: 4-4-6851-1X Diagram Number: 9	$159.45	IN STOCK FREE SHIPPING
