Denny's Driveshafts offer a variety of Ford Mustang Universal Joints. The typical Mustang driveshaft was usually 1310 or 1330 series. Keep in mind that your Mustang may have any combination of u-joint sizes so please don't assume anything.
Please measure your u-joint width and cap diameter before ordering. The 1310 u-joint will measure 3.219 wide and the 1330 will measure 3.625 wide. Both will have a 1.062 bearing cap diameter and both use outside snap rings to hold the u-joint in place.
Ford Mustangs have used two different u-joint cap diameters at the rear end pinion yokes.... some are 1.062 and some are 1.125. Care must be taken to be sure to install the right rear universal joint.
Greaseable and non greaseable maintenance free versions are available. Our high mileage maintenance free Spicer universal joints are the best choice for long life and absolutely no greasy mess under that beautifully restored Mustang.
Denny's also carries the various Combination U-joints that allow you to connect mismatched driveline components.
2.342 inches between INSIDE clips 1.00 inch diameter caps

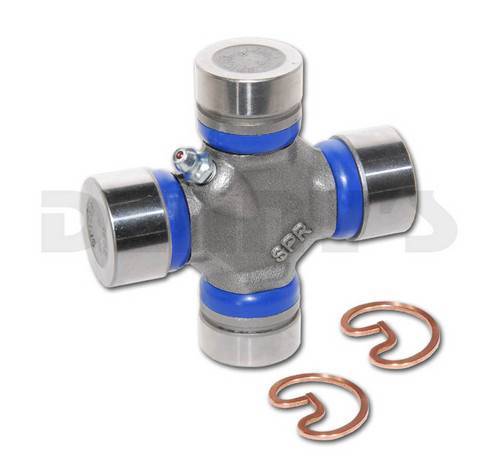

Greaseable Universal Joint
Connects transmission slip yoke to driveshaft. Used on the early Mustangs and can be easily identified by the small 1 inch diameter bearing caps and that there are no visible outside snap rings as usually found on most Ford driveshafts.
GREASEABLE U-Joint
Dimensions:
Dimension "A" & "B" =The span between the yoke inner surfaces where the "C" Clips lock in is 2.342 inches
Dimension "C" & "D" =All 4 bearing caps are 1 inch diameter with inside "C" Clips to lock the cap in place.
This universal joint is commonly used to connect the transmission slip yoke to the driveshaft
Greaseable COMBINATION Universal Joint for 1964-1966 Mustang.
Use this handy and hard to find combination u-joint to connect early Mustang inside "C" Clip style driveshafts to a newer outside snap ring style 1310 Series slip yoke.
Neapco 1-4635 Universal Joint greaseable fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint
Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint
